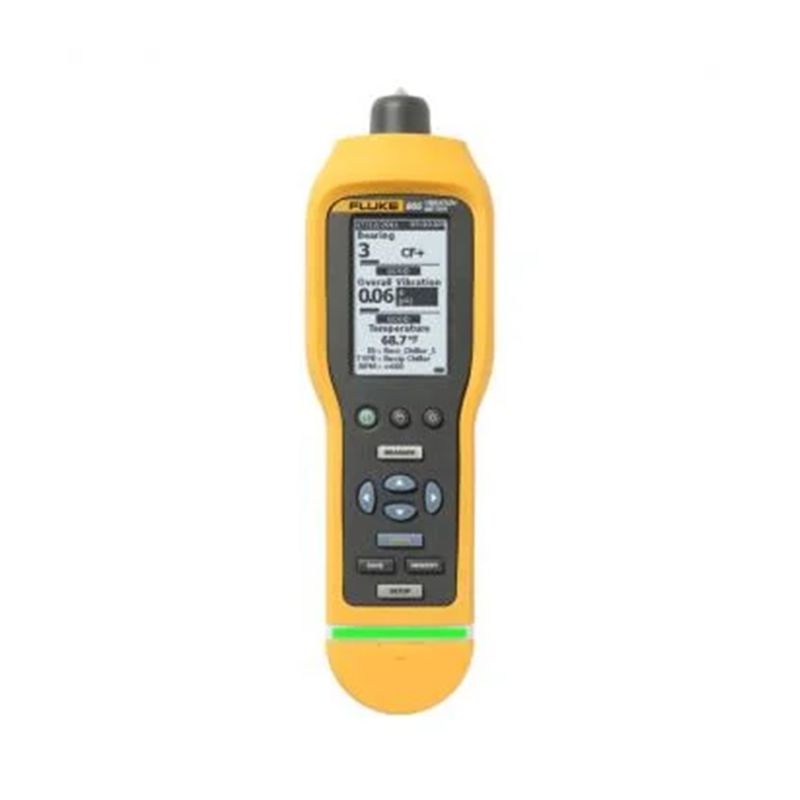

Vibration Meter | ||
Low Frequency Range (General Measurement) | 10 Hz to 1,000 Hz | |
High Frequency Range (CF+ Measurement) | 4,000 Hz to 20,000 Hz | |
Severity Levels | Good, satisfactory, unsatisfactory, not acceptable | |
Max. Vibration Limit | 50 g peak (100 g peak-peak) | |
A/D Converter | 16-bit | |
Signal-to-noise ratio | 80 dB | |
Sampling Frequency | Low Frequency | 20,000 Hz |
High Frequency | 80,000 Hz | |
Real-time clock backup | Coin cell battery | |
Sensor | ||
Sensitivity | 100 mV g ±10 % | |
Measuring Range | 0.01 g to 50 g | |
Low Frequency Range (General Measurement) | 10 Hz to 1,000 Hz | |
High Frequency Range | 4,000 Hz to 20,000 Hz | |
Resolution | 0.01 g | |
Precision | At 100 Hz ±5 % of measured value | |
Amplitude Units | ||
Acceleration | g, m/sec² | |
Speed | mm/sec, in./sec | |
Displacement | mils, mm | |
Infrared thermometer (temperature measurement) | ||
Beach | -20 °C to 200 °C | |
Precision | ± 2 °C to -15 °F | |
Focal length | Fixed, ~3.8 cm (1.5 in.) | |
External Sensor | ||
Fluke supports external sensors but does not provide them | ||
Frequency Range | 10 Hz to 1,000 Hz | |
Bias voltage (to provide power) | 20 VDC to 22 VDC | |
Bias current (to provide power) | Maximum 5 mA | |
Firmware | ||
External Interfaces | Communication via USB 2.0 (full speed) | |
Data Capacity | Database on internal flash memory | |
Upgrade | USB Connection | |
Memory | Up to 3,500 measurements | |
Radiation Emission | ||
Electrostatic Discharge: Burst | Standard EN 61000-4-2 | |
Electromagnetic Interference | Standard EN 61000-4-3 | |
RE | CISPR 11, Class A | |
Ambient characteristics | ||
Operating Temperature | -4°F to 122°F (-20 °C to 50 °C) | |
Storage Temperature | -30 °C to 80 °C (-22 °F to 176 °F) | |
Operating Humidity | 10 % to 95 % relative humidity (non-condensing) | |
Operating/Storage Altitude | From sea level to 3,048 meters (10,000 feet) | |
IP rating | IP54 | |
Maximum Vibration | 500 g peak | |
Drop Resistance Test | 1 meter | |
Characteristics | ||
Battery Type | AA (2) lithium iron disulfide | |
Autonomy | 250 measurements | |
Dimensions (W x D x H) | 24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in.) | |
Weight | 0.40 kg | |
Connectors | 7-pin USB Mini-B, stereo audio output jack (3.5mm audio plug), external sensor jack (SMB connector) |
